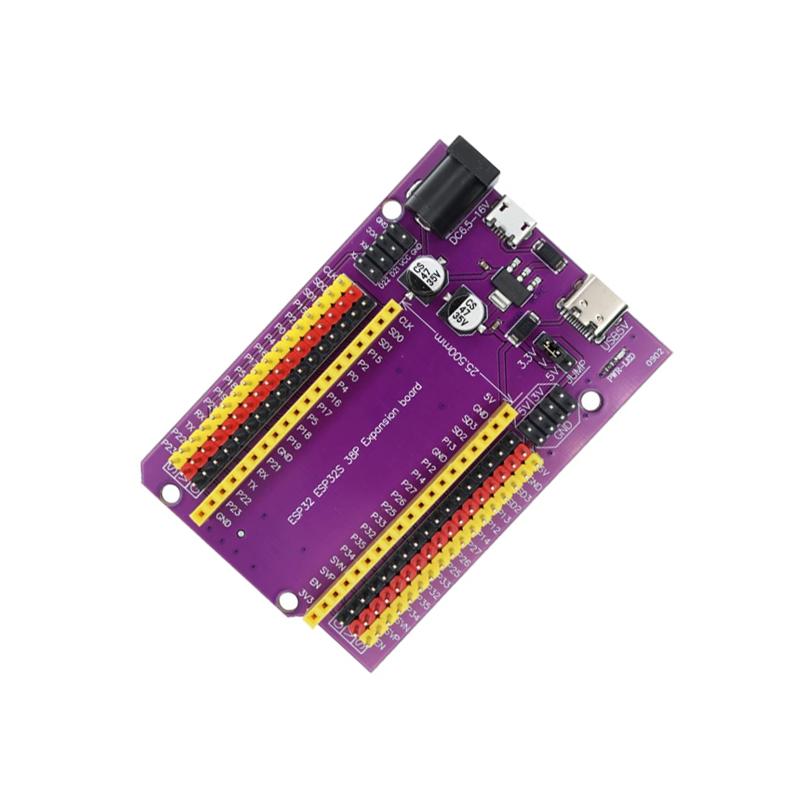

ESP32 Expansion Board 38-Pin

The ESP32 Expansion Board is designed to make prototyping and development easier by expanding the pins of an ESP32 Dev Module or ESP32-WROOM-32 board. Here’s a detailed overview: ESP32 Expansion Board Features This board is often called a 38-pin ESP32 breakout board, and here's what it includes: Main Features: Compatible with ESP32 DevKit V1 38-pin Color-coded pin rows: 🔴 Red: 3.3V power ⚫ Black: GND (Ground) 🟡 Yellow: GPIO signal pins Two USB ports: Micro USB and USB-C for power input (do not use both at the same time) Barrel Jack Input: Accepts DC 5V–12V input via the power jack Voltage Regulation: Has onboard regulators like AMS1117 to supply 3.3V and 5V to the ESP32 BOOT and EN (RESET) buttons: Used for uploading and restarting programs How to Use It Insert ESP32 DevKit Board into the center 38-pin female header. Connect components (sensors, relays, displays, etc.) to the side headers: Use jumper wires to access GPIOs, GND, or 3.3V. Power Options: USB-C or Micro USB (5V) Barrel Jack (DC 5V–12V) Upload code via USB: Connect USB to PC, open Arduino IDE or PlatformIO, and program your ESP32. Example Applications Smart home automation IoT sensors and actuators Robotics control Real-time monitoring projects
