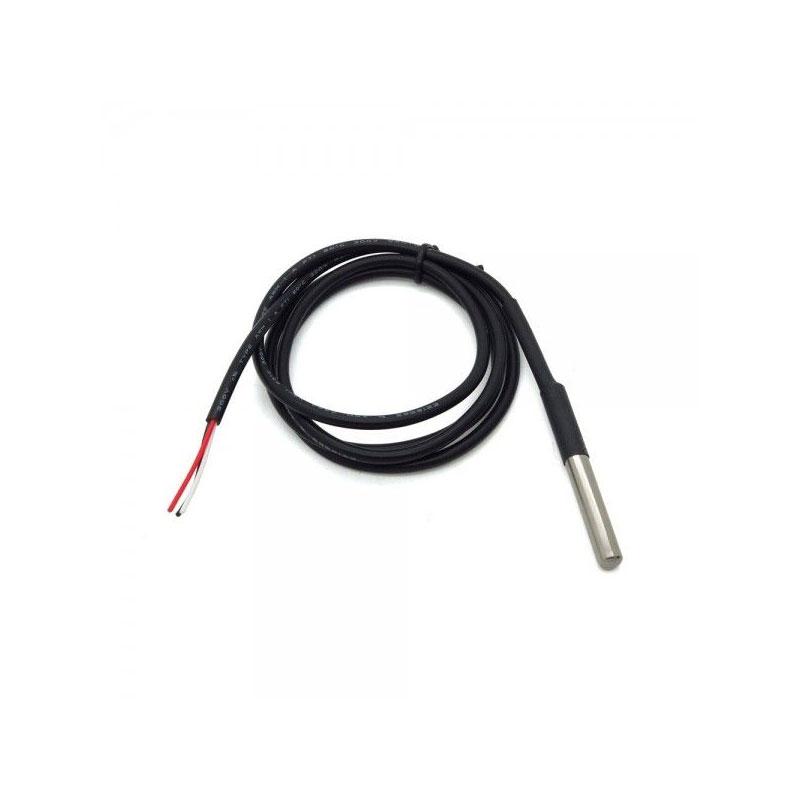

Waterproof DS18B20 Sensor Kit Generic Temperature Sensor

This waterproof temperature sensor kit is using the same probe——DS18B20 probe AS . It contains a probe with a resister module. So it is easy to connect on the Arduino board. The DS18B20 temperature sensor provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor. Compatible with 3.0-5.5V systems. SPECIFICATION Operating voltage: 3.0~ 5.5V±0.5°C Accuracy from -10°C to +85°C Usable temperature range: -55 to 125°C (-67°F to +257°F)9 to 12 bit selectable resolution Uses 1-Wire interface- requires only one digital pin for communication Unique 64 bit ID burned into chip Multiple sensors can share one pin Temperature-limit alarm system Query time is less than 750ms3 wires interface: Type A Red wire - VCC Black wire - GND Yellow wire - DATA Type B Red wire - VCC Yellow wire - GND Green wire - DATA Stainless steel tube 6mm diameter by 35mm(1.34") long Cable diameter: 4mm(0.16")Length: 90cm(35.43")
